臂板信号机

臂板信号机

色灯信号机

灯杆含义

灯杆含义

显示含义

S1-S10显示
S10a-S13a显示

记忆表格【以德国Hl系统为例】

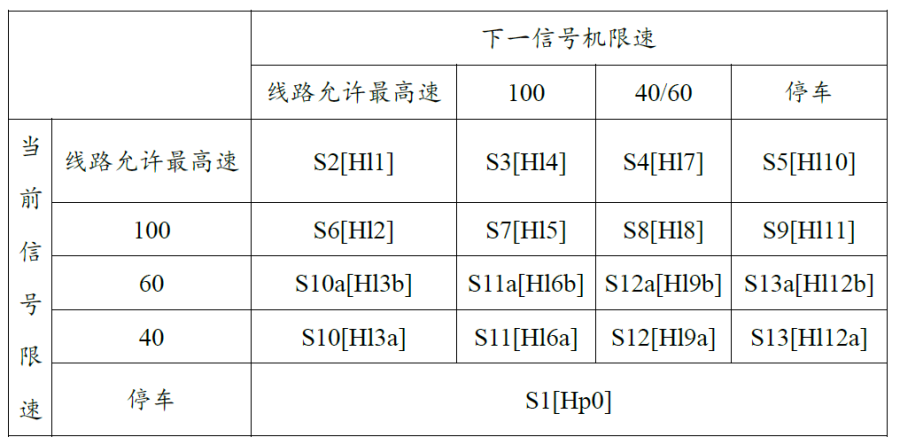

记忆表格

复示信号机

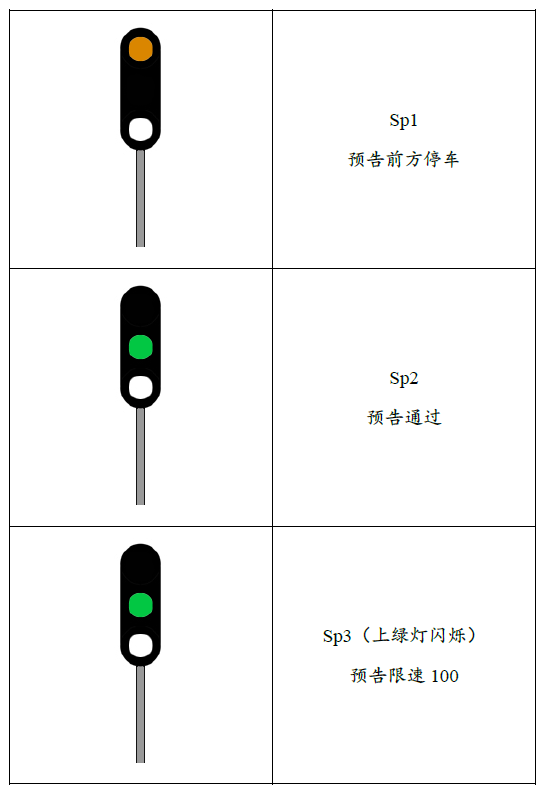

复示信号机-1

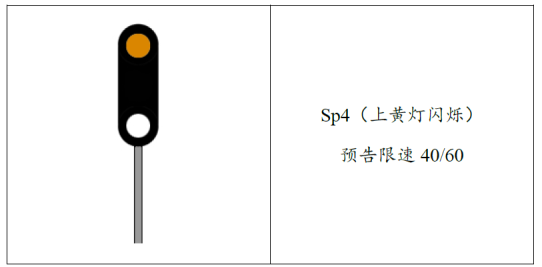

复示信号机-2

预告信号机

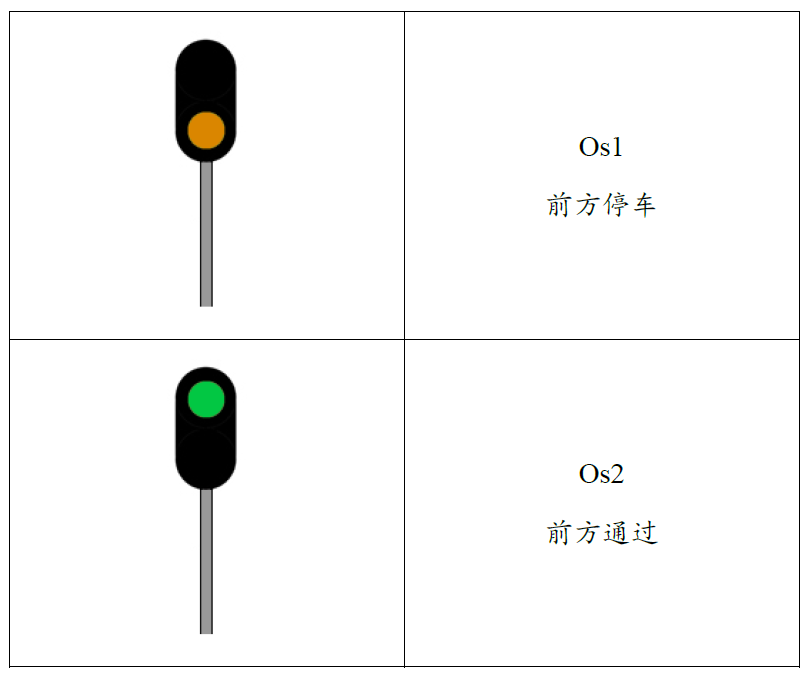

预告信号机-1

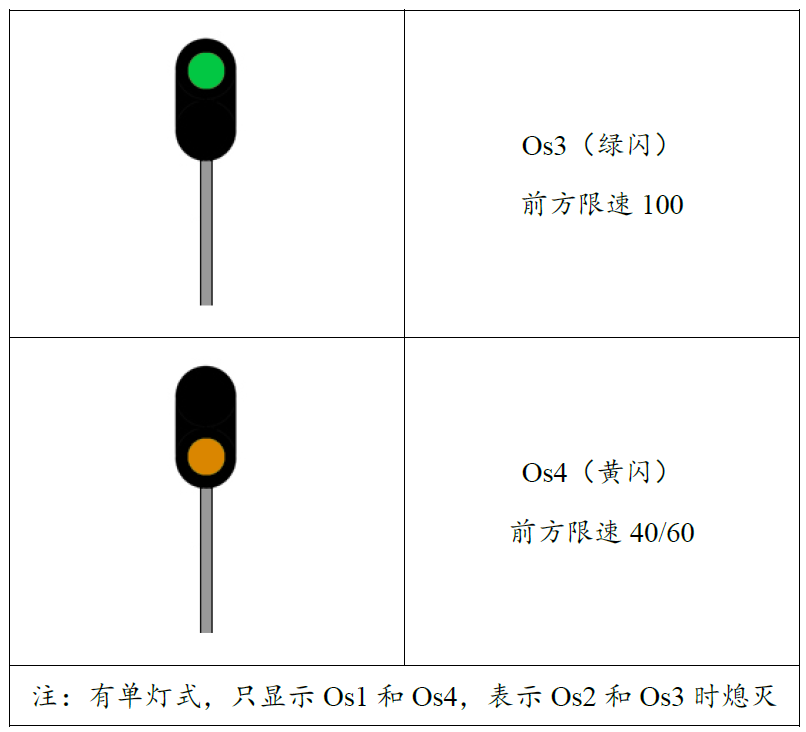

预告信号机-2

道口信号

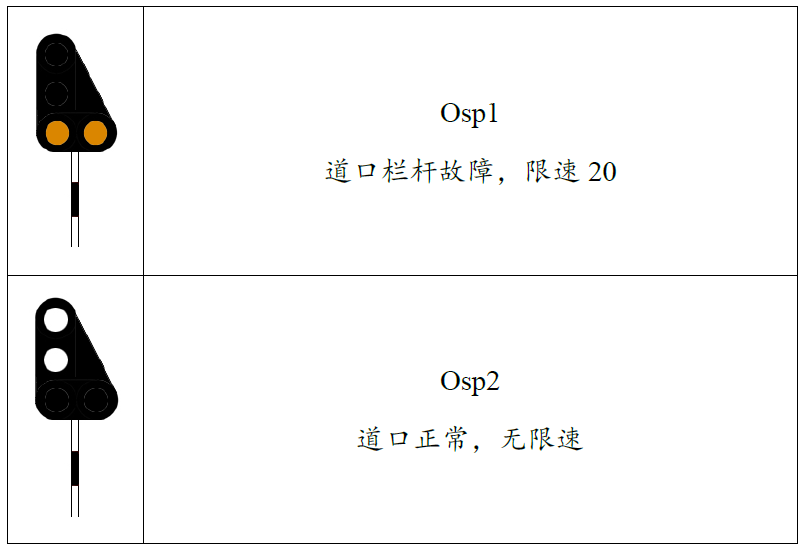

道口信号
